HORNE 15 Thermostatic Mixing Valve with integral isolating valves and wall mounting kit

H15-22C

Including integral isolating valves, swivel inlet connections, strainers, check valves, flow regulator, wall bracket, screws and wallplugs. Pipe connections by compression fitting for 15mm copper pipe. In chromium plated finish. Product Reference H15-22C and drawing PA-579B. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne H15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product.

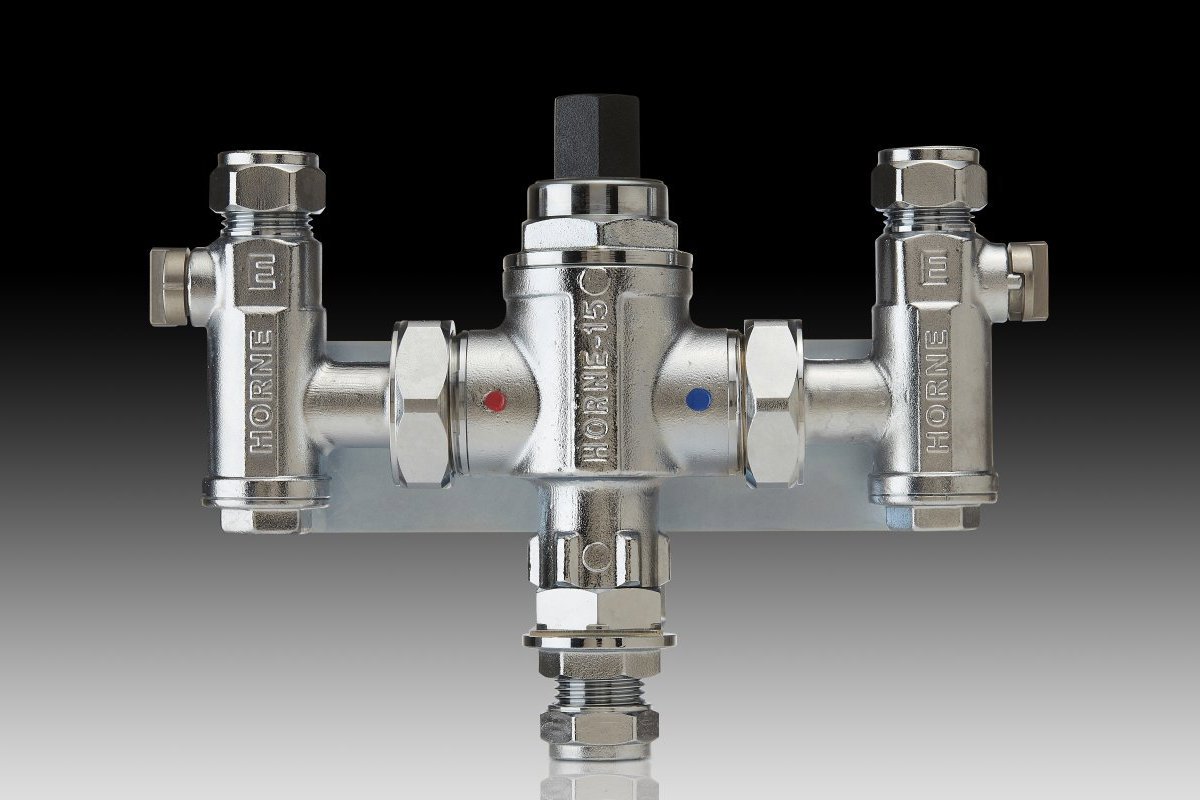

Horne 15 Thermostatic Mixing Valve DN15 Chromium plated with wall mounting kit and integral isolating valves

Horne 15-22 Thermostatic Mixing Valve Line Drawing

Flushing procedure for Horne TMVs DN15-DN25

Features

High performance Type 3 approved thermostatic mixing valve delivers accurate and reliable temperature control
Full bore, high capacity fine mesh strainer optimised to protect the thermostatic mechanism and all downstream fittings
Swivel inlet connections for installation in any orientation
Integral isolating valves for ease of maintenance
Flow regulator (8 L/min) for water and energy savings contributes to BREEAM rating
Quick and easy to install - fewer pipe connections required than traditional installation
Easy access to strainers for maintenance, pipe flushing and water sample collection
Ease of maintenance

Accessories

HORNE 15 Flushing Kit
In-line Thermal Disinfection Unit (ILTDU)
Monitoring Kit

Standards and Approvals

The HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
All materials in contact with water are UK Water Reg. 4 approved.
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Operating Parameters


Mixed water temperature setting at factory		41°C
Range of temperature adjustment		35 - 50°C
Range of hot water supply temperature		55 - 85°C
Maximum static pressure		10 bar
Range of maintained water supply pressures		0.2 - 5 bar
