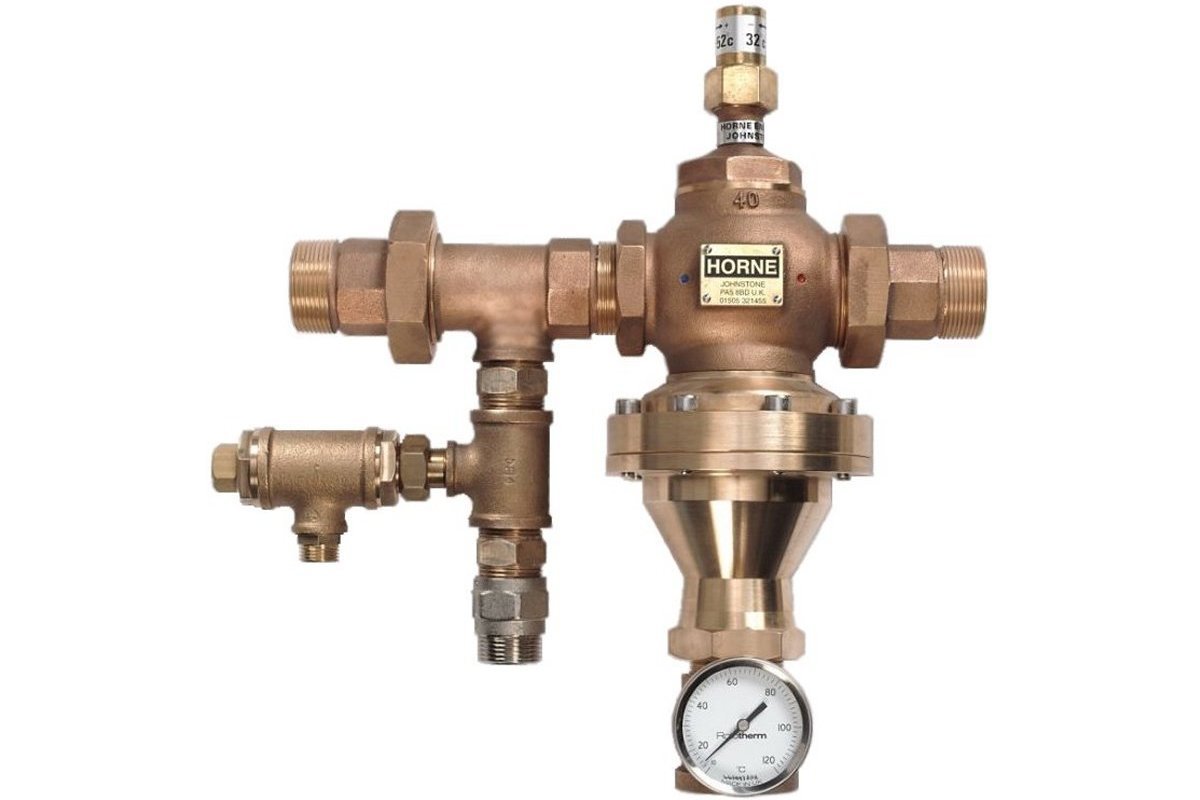

HORNE 40 Thermostatic Mixing Valve Recirculating version


A pre-assembled unit for circulating Domestic Hot Water Systems including the Horne 40 Thermostatic Mixing Valve with check valves - inlet connections male screwed 1 1/2 inch B.S.P. (DN40) and outlet connection female tapped 1 1/2 inch B.S.P. (DN40) - dial thermometer, return limiter and ball flow indicator.

Ranges of temperature adjustment available:

  • 15°C to 32°C
  • 32°C to 52°C
  • 45°C to 62°C
  • 58°C to 80°C

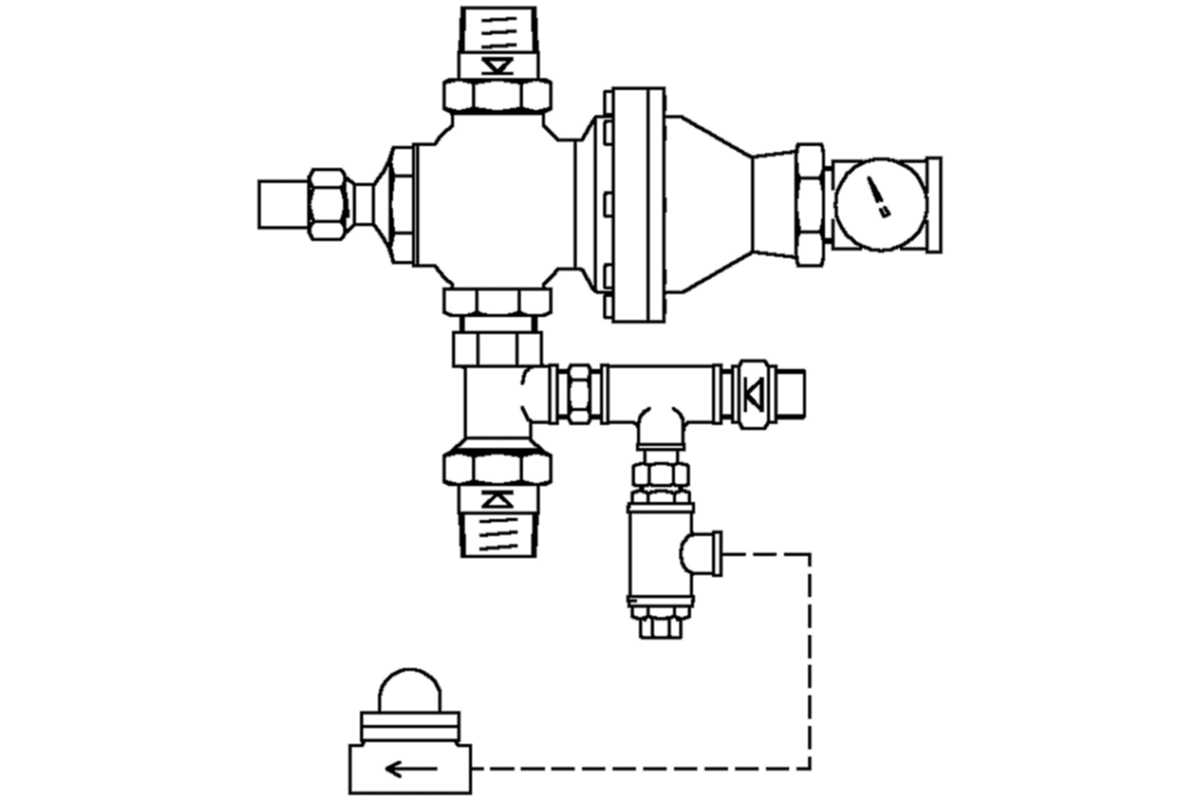

In bronze finish. Product Reference H40-R as per drawing D9350. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product


Recirculating of hot water in domestic and process hot water systems. May be used in conjunction with additional point of use thermostatic mixing valves, showers and taps.


  • Highly accurate temperature control across full range of flow rates
  • mixed water temperature maintained when no outlets in use - set temperature always available at every outlet
  • Supplied as a pre-assmebled package for easy installation
  • Robust and reliable
  • Ease of maintenance
  • Patented design: high flow - low flow functionality

Standards and Approvals

  • Compliant with UK Water Regulation 4; non-metallic materials in contact with potable water
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224
