HORNE 50 Thermostatic Mixing Valve Recirculating version

H50-R

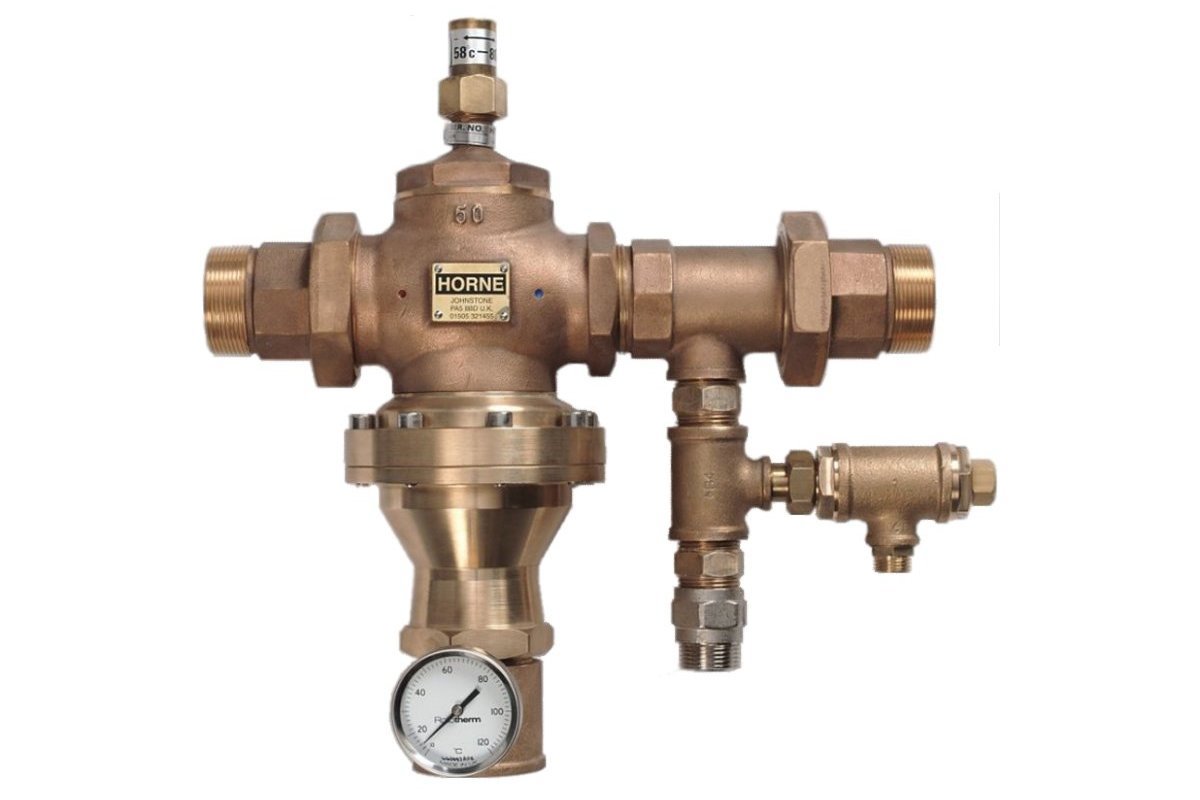

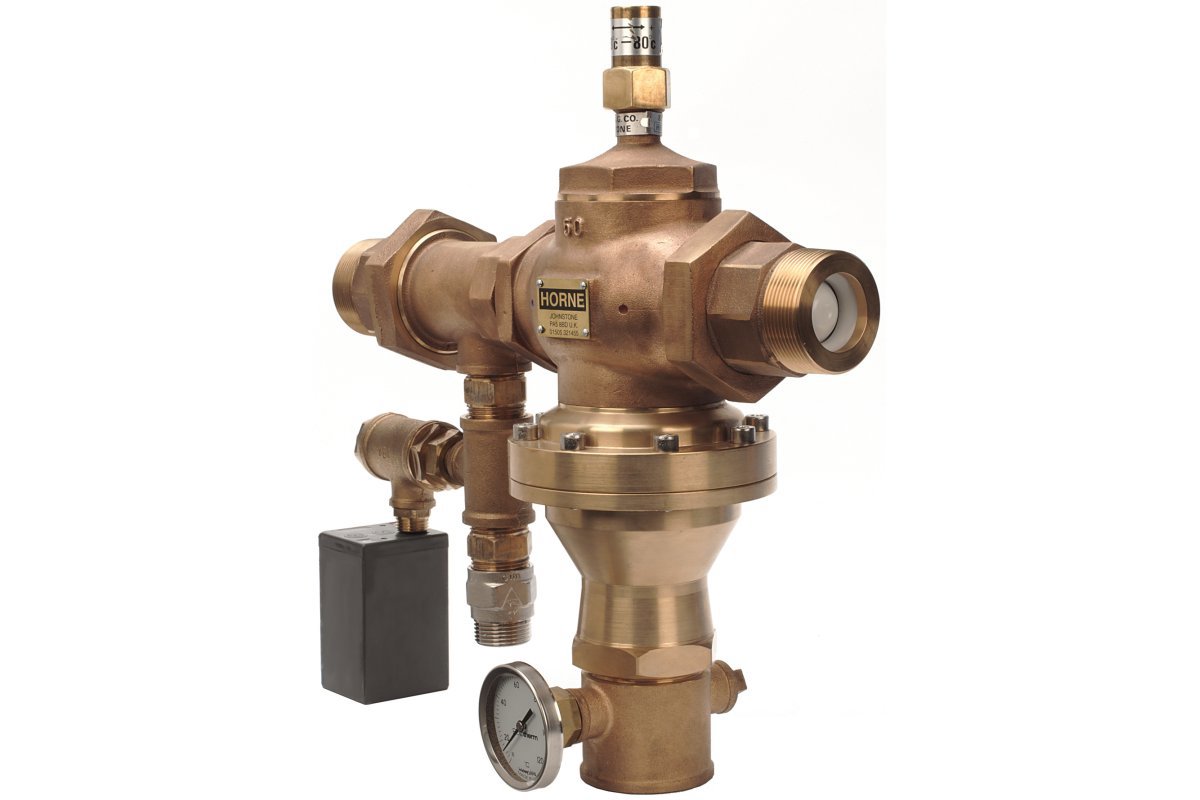

A pre-assembled unit for circulating Domestic Hot Water Systems including the Horne 50 Thermostatic Mixing Valve with check valves - inlet connections male screwed 2 inch B.S.P. (DN50) and outlet connection female tapped 2 inch B.S.P. (DN50) - dial thermometer, return limiter and ball flow indicator. Ranges of temperature adjustment available:

15°C to 32°C
32°C to 52°C
45°C to 62°C
58°C to 80°C

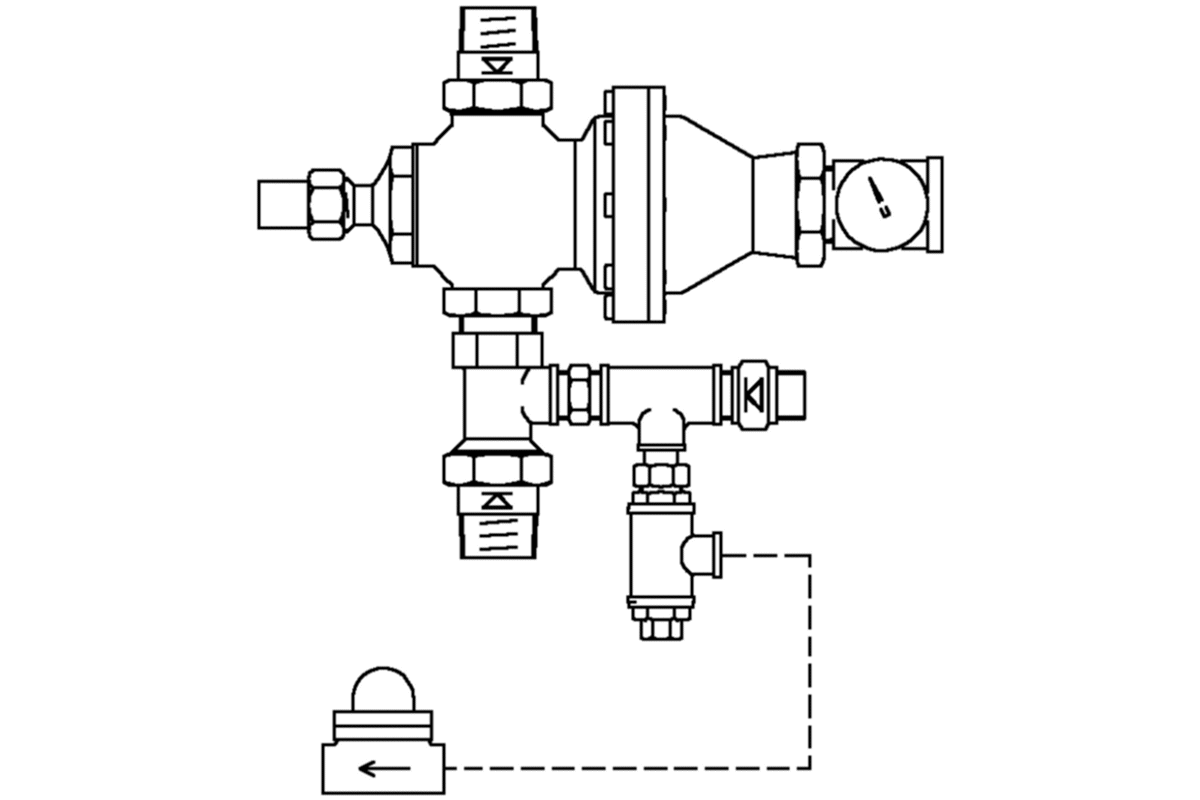

In bronze finish. Product Reference H50-R as per drawing D9351. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Recirculating of hot water in domestic and process hot water systems. May be used in conjunction with additional point of use thermostatic mixing valves, showers and taps.

Features

Highly accurate temperature control across full range of flow rates
mixed water temperature maintained when no outlets in use - set temperature always available at every outlet
Supplied as a pre-assembled package for easy installation
Robust and reliable
Ease of maintenance
Patented design: high flow - low flow functionality

Standards and Approvals

Compliant with UK Water Regulation 4; non-metallic materials in contact with potable water
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224
