Operating Instructions

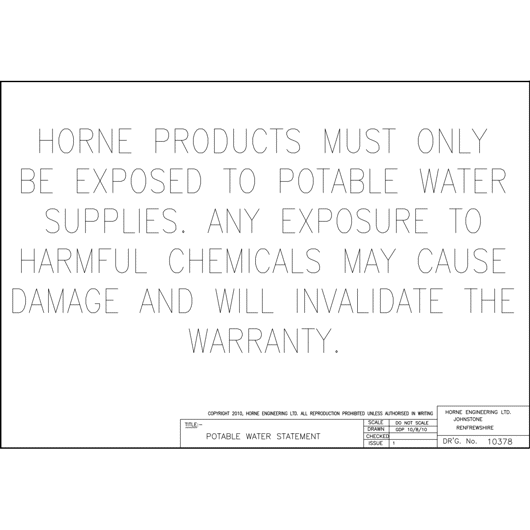

Potable Water Statement (15KB, pdf)

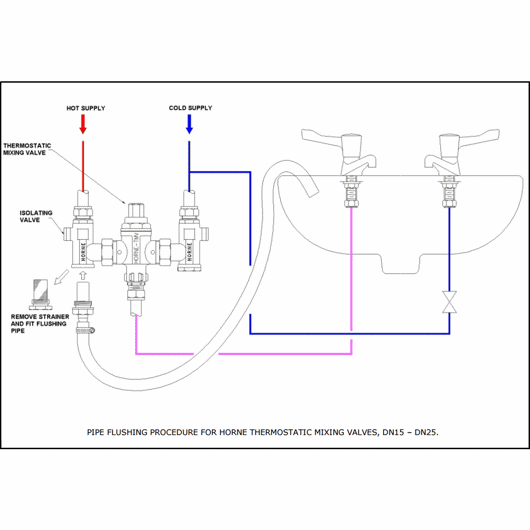

Elevated Velocity Flushing (51KB, pdf)

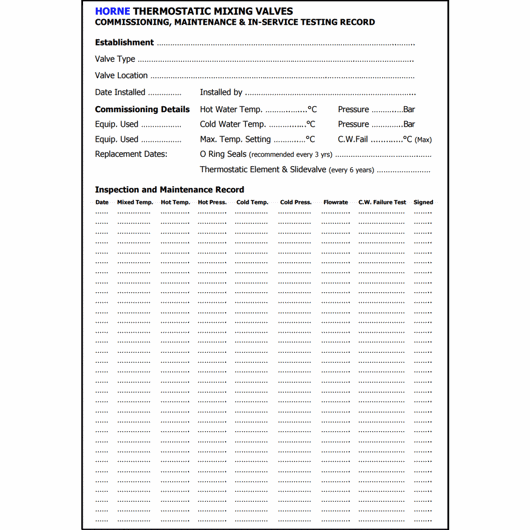

Service Record (174KB, pdf)

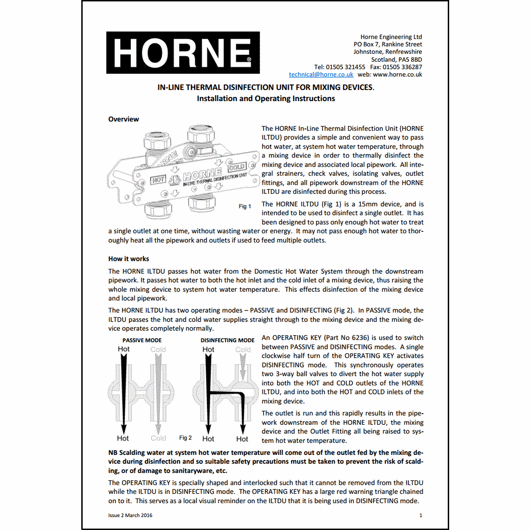

ILTDU Instructions (320KB, pdf)

L-220: Installation and operating instructions for the patented Horne ILTDU, In-line Thermal Disinfection Unit. A UK Water Regulation 4 Approved valve for managing the risk of retrograde contamination by pathogens of domestic water systems. Revised May 2025.

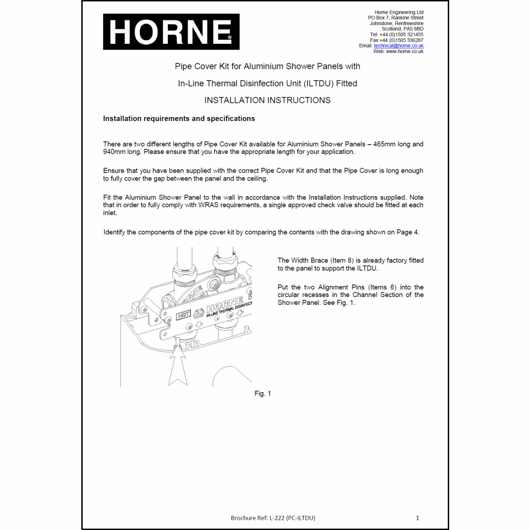

Pipe Cover (& ILTDU) Instructions (652KB, pdf)

L-222: Instructions for pipe cover installation, and ILTDU operation, in T4 and T9 type Horne shower panels (which feature an integral In Line Thermal Disinfection Unit, ILTDU). Revised May 2025.

Optitherm Instructions (673KB, pdf)

L-183: Installation, Commissioning, Operating and Maintenance instructions for the Horne Optitherm thermostatic tap. The Optitherm is designed as a Type 3 TMV, compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised July 2025.

Lever/Knob Exchange Instructions (122KB, pdf)

D7076-C. Conversion kit Parts Lists (7076A and 7076B) and instructions for exchanging Standard shower control knobs for BS 8300 compliant, inclusive design lever controls, and vice versa. Conversion Kit P/N 7076A (change to levers) replaces kit P/N 5915 from May 2024.

Pipe Cover Instructions (186KB, pdf)

L-190: Installation instructions for pipe covers compatible with powder-coated aluminium extruded shower panels. Document last updated October 2021.

IV Coupling Removal (678KB, pdf)

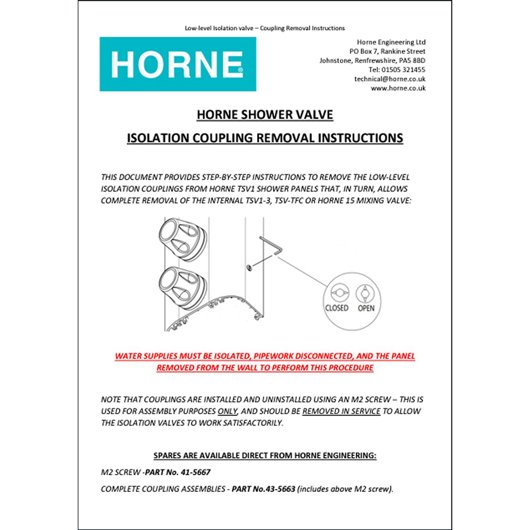

Instructions for the removal and replacement of Oldham Coupling fittings used at low level isolation points in Horne shower panels featuring an integral thermostatic shower or mixing valve.

Elevated Velocity Flushing (84KB, pdf)

TSV1-3 Shower Panel Instructions (2MB, pdf)

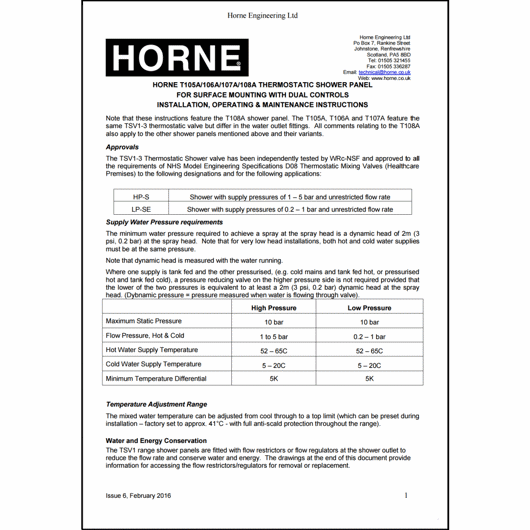

L-189: Installation, commissioning, operating and maintenance instructions for Horne TSV1-3 shower valve and panel variants. Please refer to L-180 for LR, and L-241 for accessible dual outlet Horne shower panels. The TSV1-3 is a UK Water Reg 4 and Type 3 TMV Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TSV1-3 with ILTDU Shower Panel Instructions (2MB, pdf)

L-189: Installation, commissioning, operating and maintenance instructions for Horne TSV1-3 shower valve and panel variants with integral ILTDU, In-line Thermal Disinfection Unit. Please refer to L-180 for dual-outlet/bimodal Horne shower panels with automatic flow diverter, and L-241 for dual-outlet/bimodal Horne shower panels with manually operated flow diverter . The TSV1-3 is a UK Water Reg 4 and Type 3 TMV Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TSV-TFC Shower Panel Instructions (2MB, pdf)

L-178: Installation, commissioning, operating and maintenance instructions for Horne shower panels with combined thermostatic shower valve and timed flow control (T20X variants). The TSV1-TFC is a UK Water Reg 4 (materials in contact with potable water) and Type 3 TMV Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TSV-TFC with ILTDU Shower Panel Instructions (2MB, pdf)

L-178: Installation, commissioning, operating and maintenance instructions for Horne shower panels with combined thermostatic shower valve and timed flow control (T20X variants) and integral ILTDU, In-line Thermal Disinfection Unit. The TSV1-TFC is a UK Water Reg 4 (materials in contact with potable water) and Type 3 TMV Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

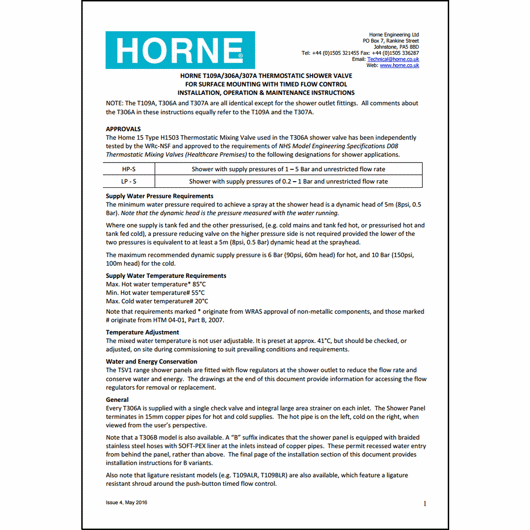

H15-TFC Shower Panel Instructions (1MB, pdf)

L-84: Installation, commissioning, operating and maintenance instructions for Horne shower panels with integral Horne 15 thermostatic mixing valve (TMV) and push button timed flow control. The Horne 15 is UK Water Reg 4 (materials in contact with potable water) and Type 3 Approved TMV compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

H15-TFC with ILTDU Shower Panel Instructions (2MB, pdf)

L-84: Installation, commissioning, operating and maintenance instructions for Horne shower panels with integral Horne 15 thermostatic mixing valve (TMV) and push button timed flow control, with integral ILTDU. The Horne 15 is UK Water Reg 4 (materials in contact with potable water) and Type 3 Approved TMV compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TFC (Group) Shower Panel Instructions (594KB, pdf)

L-210: Installation, Commissioning, Operating and Maintenance Instructions for Horne surface mounted shower panel models S40X for group shower installations with timed flow control. Revised January 2023.

TSV1-3 Auto-Div Instructions (12MB, pdf)

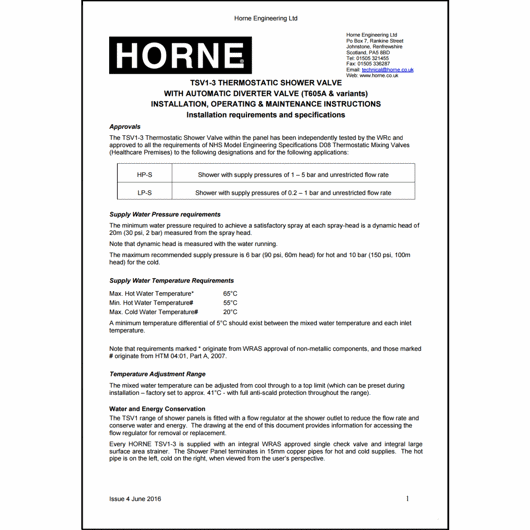

L-180: Installation, commissioning, operating and maintenance instructions for Horne bimodal shower panels with TSV1-3 thermostatic shower valve and Automatic flow diverter. Please refer to L-241 for Bimodal shower panels with Manual flow diverter, and L-189 for single outlet, dual control TSV1-3 shower panel instructions. The TSV1-3 is a UK Water Reg 4 (materials in contact with potable water) and Type 3 Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TSV1-3 Auto-Div & ILTDU Instructions (13MB, pdf)

L-180: Installation, commissioning, operating and maintenance instructions for Horne bimodal shower panels with TSV1-3 thermostatic shower valve, Automatic flow diverter and integral ILTDU, In-line Thermal Disinfection Unit. Please refer to L-241 for Bimodal shower panels with Manual flow diverter, and L-189 for single outlet, dual control TSV1-3 shower panel instructions. The TSV1-3 is a UK Water Reg 4 (materials in contact with potable water) and Type 3 Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

TSV-MDV Divert & ILTDU Instructions (1MB, pdf)

L-241: Installation, commissioning, operating and maintenance instructions for Horne bimodal shower panels with TSV-MDV thermostatic shower valve with manual flow diverter plus integral ILTDU, In-line Thermal Disinfection Unit. Please refer to L-180 for Bimodal shower panels with Automatic flow diverter, and L-189 for single outlet, dual control TSV1-3 shower panel instructions. Revised May 2025.

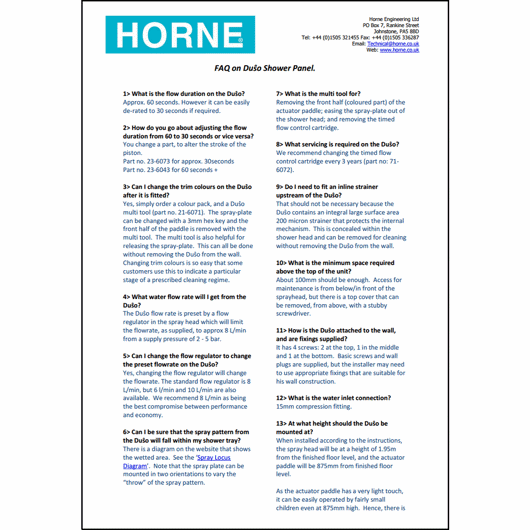

Duso FAQ (452KB, pdf)

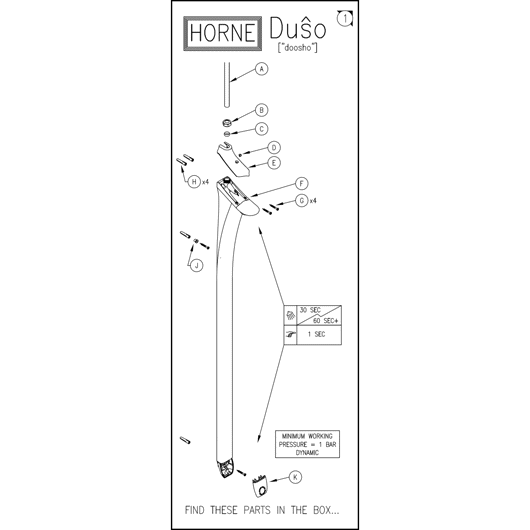

Answers to common questions relating to the installation, commissioning and operation of the Duŝo shower column

Duso Instructions (196KB, pdf)

L-214: Installation, Commissioning, Operating and Maintenance instructions for the Duŝo shower column. Last updated March 2017.

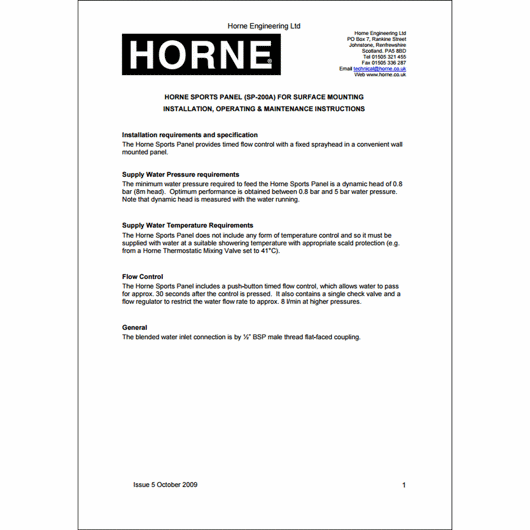

Sports Panel - SP-200A - Installation & Maintenance Instructions (159KB, pdf)

Please note the SP-200A Sports Panel shower was discontinued from our range in January 2014, and replaced with the Duŝo shower column. It is our standard policy to stock spare parts for discontinued products for a minimum period of 10 years, as such spare parts for the SP-200A Sports Panel will be run down to zero from January 2024.

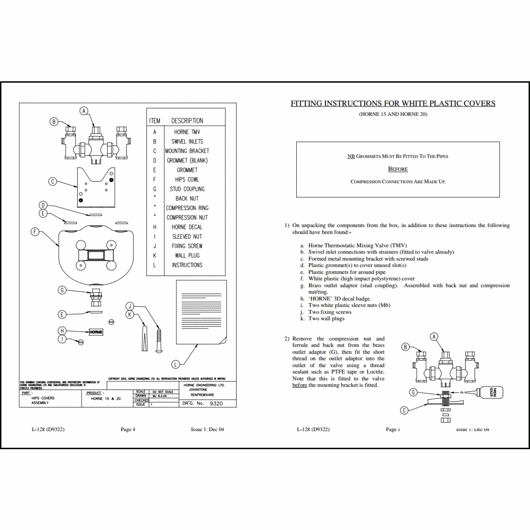

HIPS Cover Fitting Instructions (135KB, pdf)

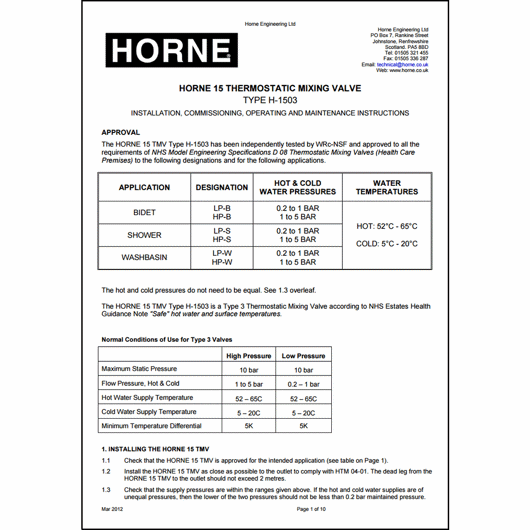

Horne 15 Instructions (925KB, pdf)

L-77 - Installation, Commissioning, Operating and Maintenance instructions for the Horne 15 thermostatic Mixing Valve. The Horne 15 (Type H1503) is a UK Water Reg 4 and Type 3 Approved Thermostatic Mixing Valve compliant to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises). Revised May 2025.

Horne 20 Instructions (542KB, pdf)

Installation, Commissioning, Operating and Maintenance instructions for the Horne 20 (Type H2003) Thermostatic Mixing Valve. The Horne 20 is designed as a Type 3 Thermostatic mixing valve and to comply with UK Water Reg 4. Type 3 Thermostatic Mixing Valve to Model Engineering Specification D08 / D 08 Thermostatic Mixing Valves (Healthcare Premises)

Horne 25 Instructions (183KB, pdf)

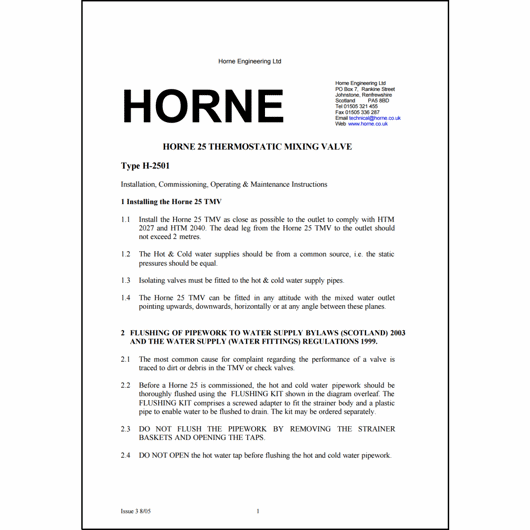

Installation, Commissioning, Operating and Maintenance instructions for the Horne 25 thermostatic Mixing Valve. The Horne 25 (Type H2501) is a UK Water Reg 4 approved Thermostatic Mixing Valve.

Horne 32 Instructions (396KB, pdf)

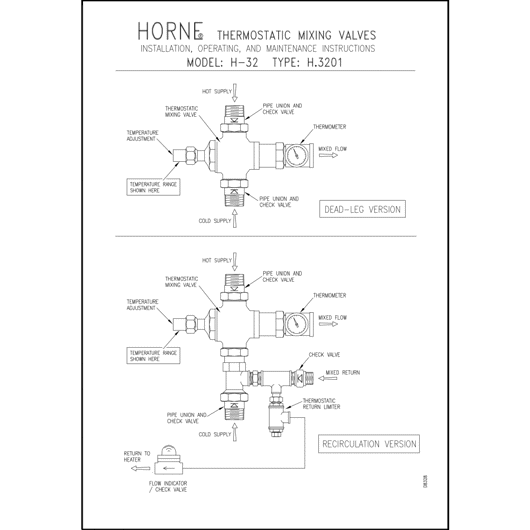

L-102: Installation, commissioning, operating and maintenance instructions for Horne 32 thermostatic mixing valve, H32 TMV

Horne 40 Instructions (429KB, pdf)

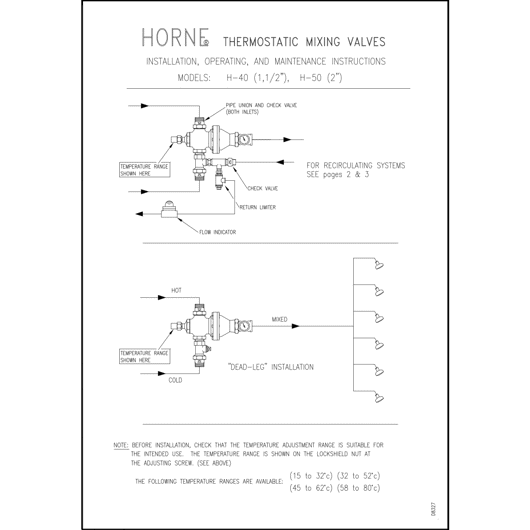

L-103: Installation, commissioning, operating and maintenance instructions for Horne 40 thermostatic mixing valve, H40 DN40 TMV

Horne 50 Instructions (429KB, pdf)

L-103: Installation, commissioning, operating and maintenance instructions for Horne 50 thermostatic mixing valve, H50 DN50 TMV
