Shower Spares

Lever/Knob Exchange Instructions (122KB, pdf)

D7076-C. Conversion kit Parts Lists (7076A and 7076B) and instructions for exchanging Standard shower control knobs for BS 8300 compliant, inclusive design lever controls, and vice versa. Conversion Kit P/N 7076A (change to levers) replaces kit P/N 5915 from May 2024.

Shower Panel Spares (545KB, pdf)

Replacement componentry for Horne shower panels, excluding any integral shower valve parts (please refer to the relevant valve spare parts list). Revised June 2025.

Riser Rail Spare Parts - PDF (44KB, pdf)

Spare part componentry for Horne riser rail - for both wall and panel mounted options. Pdf format.

Handset Holder Spare Parts - PDF (67KB, pdf)

Spare part componentry for handset holder / riser mechanism on Horne shower riser rails (panel and wall-mounted options). Pdf format.

TSV1-3 Spare Parts (12MB, pdf)

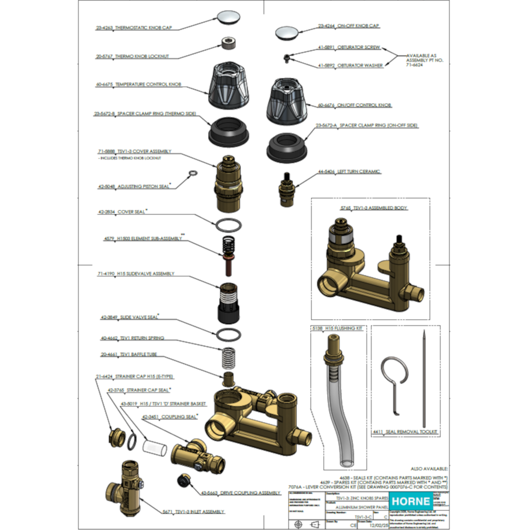

Spare Part and Accessories Drawing for Horne TSV shower valves (TSV1-3 / TSV-MDV). A four-page document with exploded labelled diagrams for TSV1-3 shower valves with standard, lever and ligature resistant controls, and TSV-MDV manual diverter valve (lever controls only). Revised May 2025.

TSV-TFC Spare Parts (2MB, pdf)

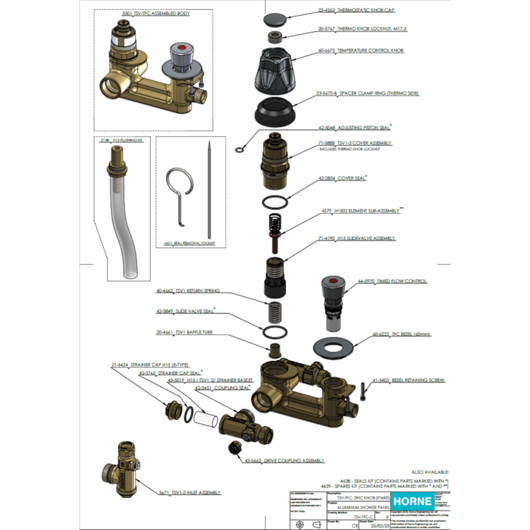

Spare parts and accessories list for Horne TSV-TFC shower valve with combined push-button timed-flow control and temperature control. A 3 page document with exploded diagrams for standard, lever and ligature resistant controls. Revised May 2025.

Duso Spare Parts (289KB, pdf)

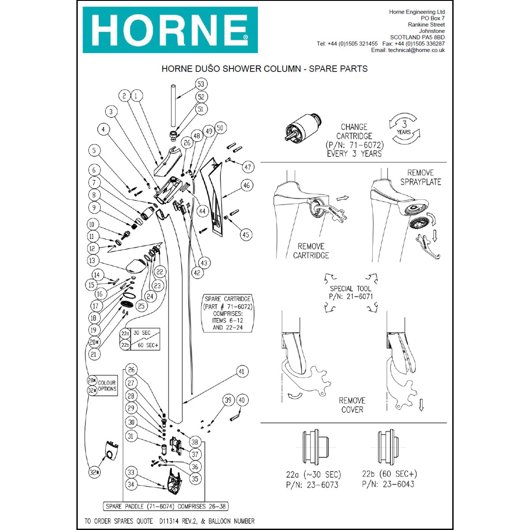

Replacement and spare parts list for Horne Duŝo shower column

Horne 15 Spare Parts (778KB, pdf)

Spare parts, tools and accessories list for the Horne 15 (Type H1503) DN15 thermostatic mixing valve. Revised May 2025.
