View the animation below to explore our range of inclusive design showers and supportive grab rails for Acute healthcare, Rehabilitation, Residential and Dementia Care facilities, assisted and home care adaptations, and Accessible and Changing Places facilities.
 |
 |
T7Y5T42L - Our Principal range of showers for Accessible installations (T7*5T*2L range). Inclusive Design dual-mode pre-plumbed shower panel with integral Type 3 (healthcare) compliant Horne TSV-MDV dual control shower valve with lever controls, manual operation flow diverter valve - to fixed and vandal resistant shower head, or to hose and handset for assisted showering. Integral In-line Thermal Disinfection Unit, ILTDU, for pathogen control, and 465mm pipe cover. Includes wall-mounted riser rail in deep orange/grey (assisting users with visual impairments) with inclusive-design handset carriage holder and release extender. Meets a broad range of Accessible Design Guidance: Doc M, BS8300, HBN 00-02, NI Adaptations OT Toolkit, Wheelchair Housing Design Guide.
T7Y5T92L - as above shower model but with 940mm pipe cover.
T705T42L - as above shower model but with white/grey wall-mounted rail.
T705T92L - as above shower model but with white/grey wall-mounted riser rail and 940mm pipe cover.
 |
 |

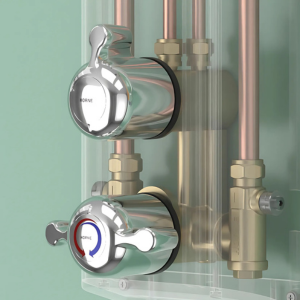

T108T42L - inclusive design single-mode pre-plumbed shower panel with integral Type 3 (healthcare) approved Horne TSV1-3 dual control shower valve with lever controls, white/grey riser rail with sliding handset carriage and release extender, integral ILTDU (in-line thermal disinfection unit) and 465mm pipe cover. Meets Changing Places guidance only. Compliance with BS8300 and HBN 00-02 (Semi-ambulant & Independent Wheelchair) may be achieved by including an additional 675mm wall-mounted riser rail adjacent to the shower panel.

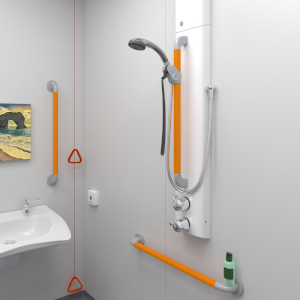

T1Y8T92L - as above shower model but with deep orange/grey riser rail and 940mm pipe cover.
******
Further models, also suited to accessible/inclusive installations, are also available. For an overview of the full shower range please download our Shower Brochure. Alternatively check out our helpful Infographic that directs specifiers to preferred NBS Source Listings.
 |
 |
A robust aluminium extrusion with protective epoxy-polyester coating and durable grey plastic elbows for wall fixing. Available in white or vibrant orange. Select orange variants specifically to aid users with age and dementia-related sight loss, decreased colour perception and other visual impairments.

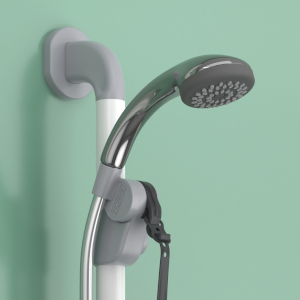

70-6600 - wall-mounted shower riser rail. White/grey.
With inclusive design sliding handset carriage and release extender. 32mm diameter, 675mm between fixing centres. Maximum load 150Kgf.

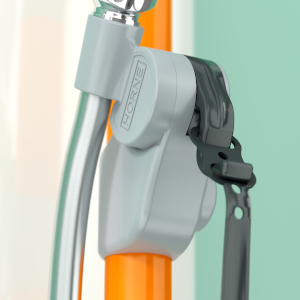

70-6601 - wall-mounted shower riser rail. Orange/grey.
With inclusive design sliding handset carriage and release extender. 32mm diameter, 675mm between fixing centres. Maximum load 150Kgf.
******
For guidance on mounting heights, please read Accessible Design for less able users in our Knowledge Share.
 |
 |
70-6611 - wall-mounted supportive grab rail. White/grey.
For pairing with accessible toilets, wash-hand basins, baths and changing seats. For mounting in vertical, oblique or horizontal orientation. 32mm diameter, 675mm between fixing centres. Maximum load 150Kgf.

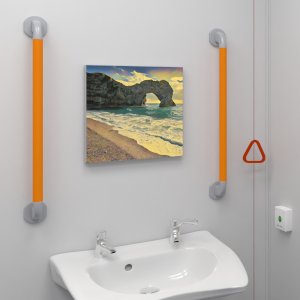

70-6612 - wall-mounted supportive grab rail. Orange/grey.
For pairing with accessible toilets, wash-hand basins, baths and changing seats. For mounting in vertical, oblique or horizontal orientation. 32mm diameter, 675mm between fixing centres. Maximum load 150Kgf.
******
For guidance on mounting heights, please read Accessible Design for less able users in our Knowledge Share.
We have a large number of accessible shower models available, all listed on NBS Source and, to assist with your exact model selection, we have devised a helpful Infographic. It's a visual guide through the available feature options; valve, shower head, riser rail and ILTDU options, linking you easily to the exact NBS Source listing.
