Surface Mounted Shower Panels

Horne shower panels have been developed to precisely address the requirements of a variety of commercial and institutional markets, including healthcare, accessible, student and secure accommodations, education and leisure.

In the 1920s, we developed the first blending valve for mixing safe, comfortable warm water and, adding to our technology, we developed our first thermostatic shower valve in the early 1990s. Our pre-plumbed shower panels offer highly specialised designs to meet specific customer needs across a variety of sectors and applications.

Toolbox
Download Brochure

T105T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Fixed vandal resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
465mm Pipe Cover with access slot

T105T9

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Fixed vandal resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

T105T4LR

Includes

TSV1-3 Thermostatic shower valve
Ligature resistant flow control
Ligature resistant temperature adjustment
Fixed vandal and ligature resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
465mm Pipe Cover with access slot

T105T9LR

Includes

TSV1-3 Thermostatic shower valve
Ligature resistant flow control
Ligature resistant temperature adjustment
Fixed vandal and ligature resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

T105T42L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Fixed vandal resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
465mm Pipe Cover with access slot

T105T92L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Fixed vandal resistant shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

T106T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Swivel shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
465mm Pipe Cover with access slot

T106T9

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Swivel shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

T106T42L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Swivel shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
465mm Pipe Cover with access slot

T106T92L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Swivel shower head
Flow regulator (8 L/min)
Low level servicing valves
Integral In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

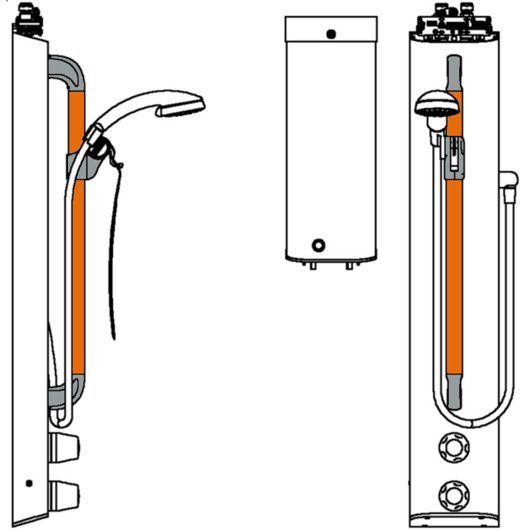

T1Y7T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
3 function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm Pipe Cover with ILTDU access slot

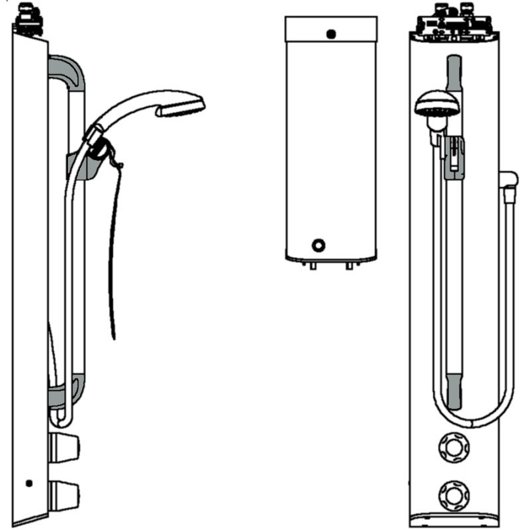

T107T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
3 function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm Pipe Cover with ILTDU access slot

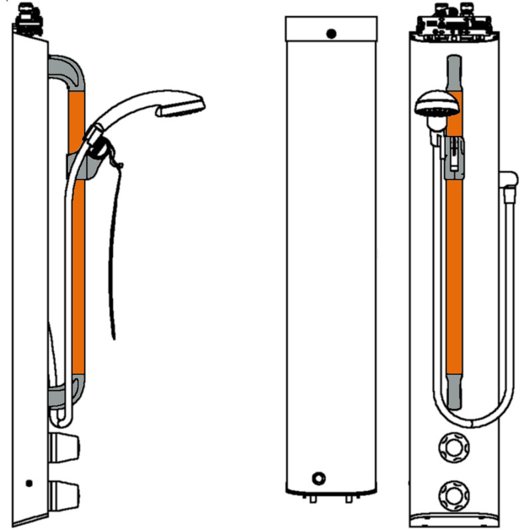

T1Y7T9

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
3 function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

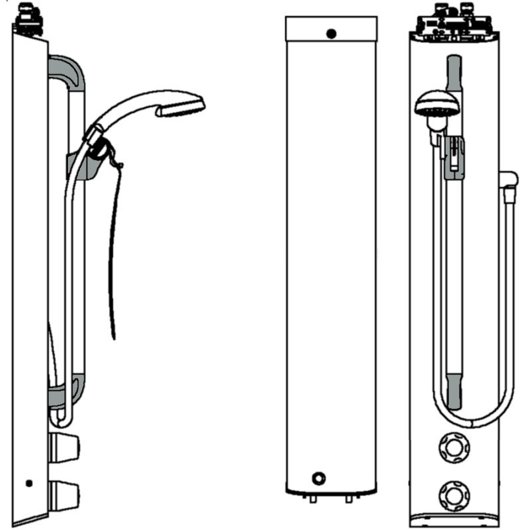

T107T9

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
3 function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
940mm Pipe Cover with access slot

T1Y7T42L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Three function handset plus hose
Riser Rail with inclusive design sliding handset holder
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm pipe cover with access slot

T107T42L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Three function handset plus hose
Riser Rail with inclusive design sliding handset holder
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm pipe cover with access slot

T1Y7T92L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Three function handset plus hose
Riser Rail with inclusive design sliding handset holder
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
940mm pipe cover with access slot

T107T92L

Includes

TSV1-3 thermostatic shower valve
Lever temperature adjustment
Lever flow control
Three function handset plus hose
Riser Rail with inclusive design sliding handset holder
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
940mm pipe cover with access slot

T1Y8T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Single function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm Pipe Cover with ILTDU access slot

T108T4

Includes

TSV1-3 thermostatic shower valve
Temperature adjustment
Flow control
Single function handset, hose and riser rail
Flow regulator (8 L/min)
Low-level servicing valves
Integrated In-Line Thermal Disinfection Unit
465mm Pipe Cover with ILTDU access slot
