Horne 25

The Horne 25 (Type H2501) is a UK Water Regulation 4 Approved DN25 thermostatic mixing valve (TMV) for supplying safe hot water to a row of basin taps or a group of showers, at a controlled temperature over a wide range of inlet pressures.

H25-12 Line Drawing

H25-11B Horne 25 Thermostatic Mixing valve

Toolbox
Download Brochure

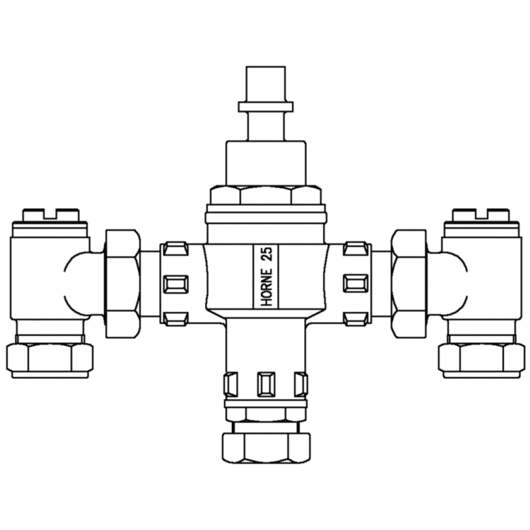

Horne H25-11 Line Drawing

H25-11B

Includes

Full bore fine mesh strainers
Check valves on hot and cold supplies
Swivel inlet connections with flat faced unions
Compression fittings for 28mm OD copper pipe on all connections
Bronze finish

Horne H25-11 Line Drawing

H25-11C

Includes

Full bore fine mesh strainers
Check valves on hot and cold supplies
Swivel inlet connections with flat faced unions
Compression fittings for 28mm OD copper pipe on all connections
Chromium plated finish

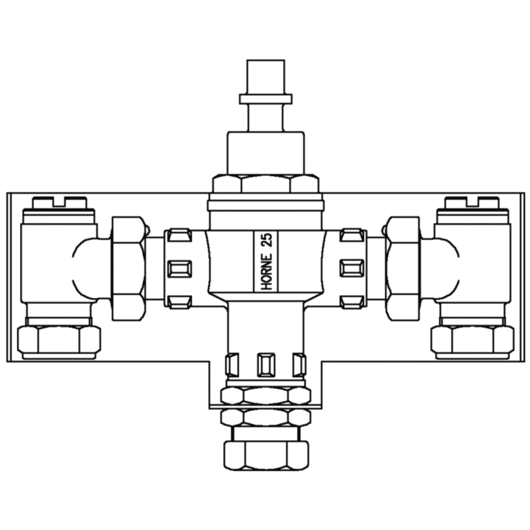

H25-12 Line Drawing

H25-12B

Includes

Full bore fine mesh strainers
Check valves on hot and cold supplies
Swivel inlet connections with flat faced unions
Compression fittings for 28mm OD copper pipe on all connections
Wall-mounting bracket
Bronze finish

H25-12 Line Drawing

H25-12C

Includes

Full bore fine mesh strainers
Check valves on hot and cold supplies
Swivel inlet connections with flat faced unions
Compression fittings for 28mm OD copper pipe on all connections
Wall-mounting bracket
Chromium plated finish

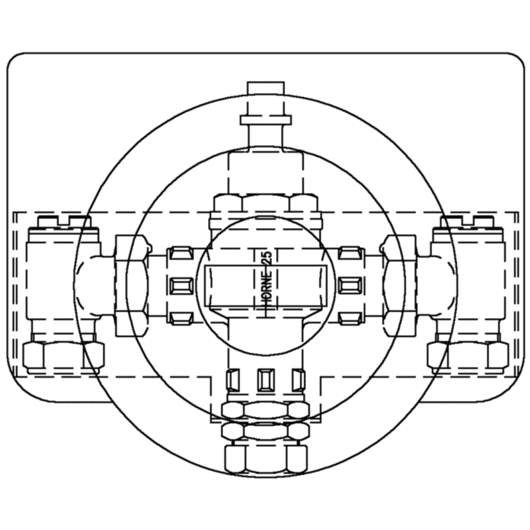

Horne H25-13 Line Drawing

H25-13B

Includes

Full bore fine mesh strainers
Check valves on hot and cold supplies
Swivel inlet connections with flat faced unions
Compression fittings for 28mm OD copper pipe on all connections
Wall-mounting bracket and white plastic cover
Bronze finish
